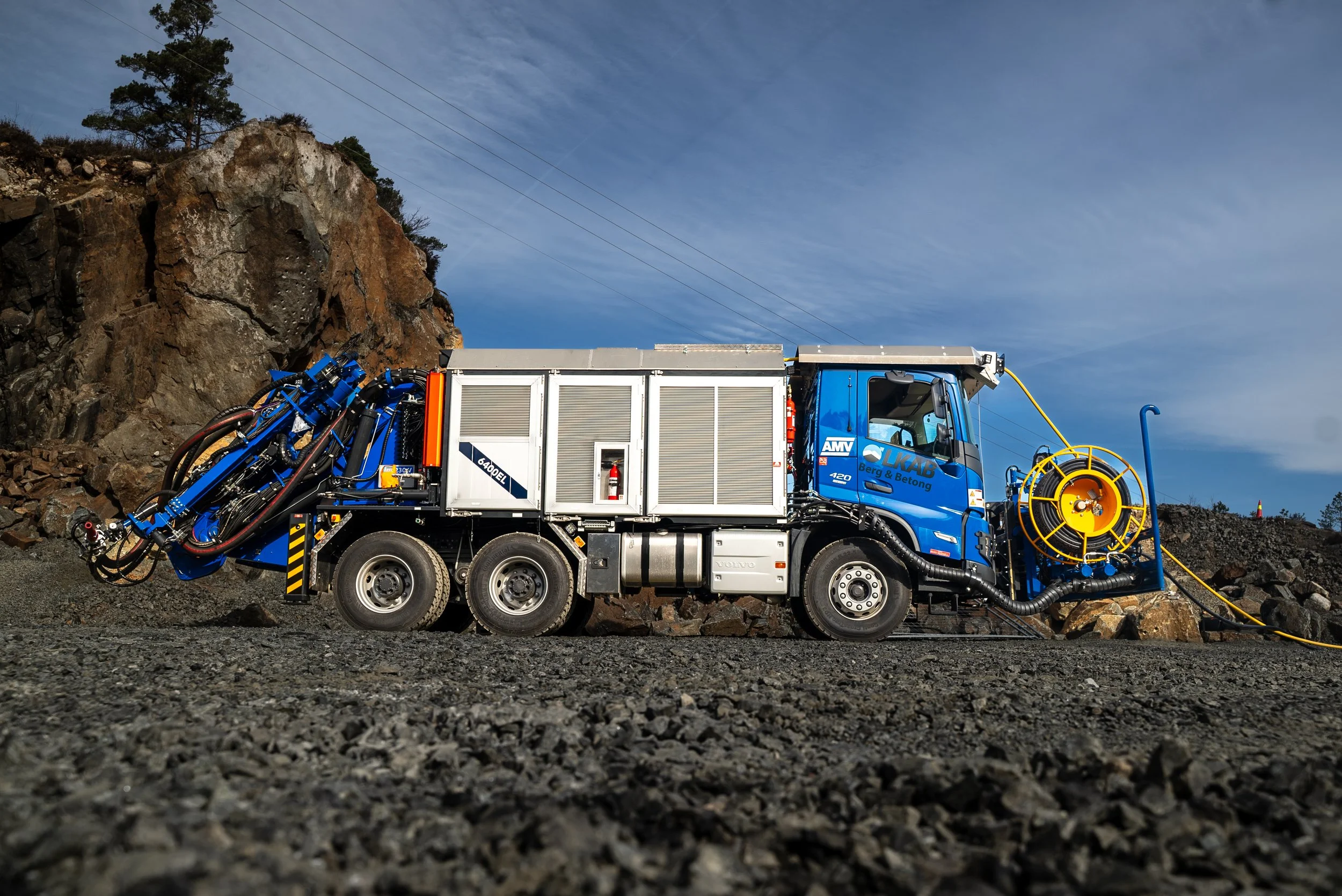

AMV 6400
Shotcrete Robot

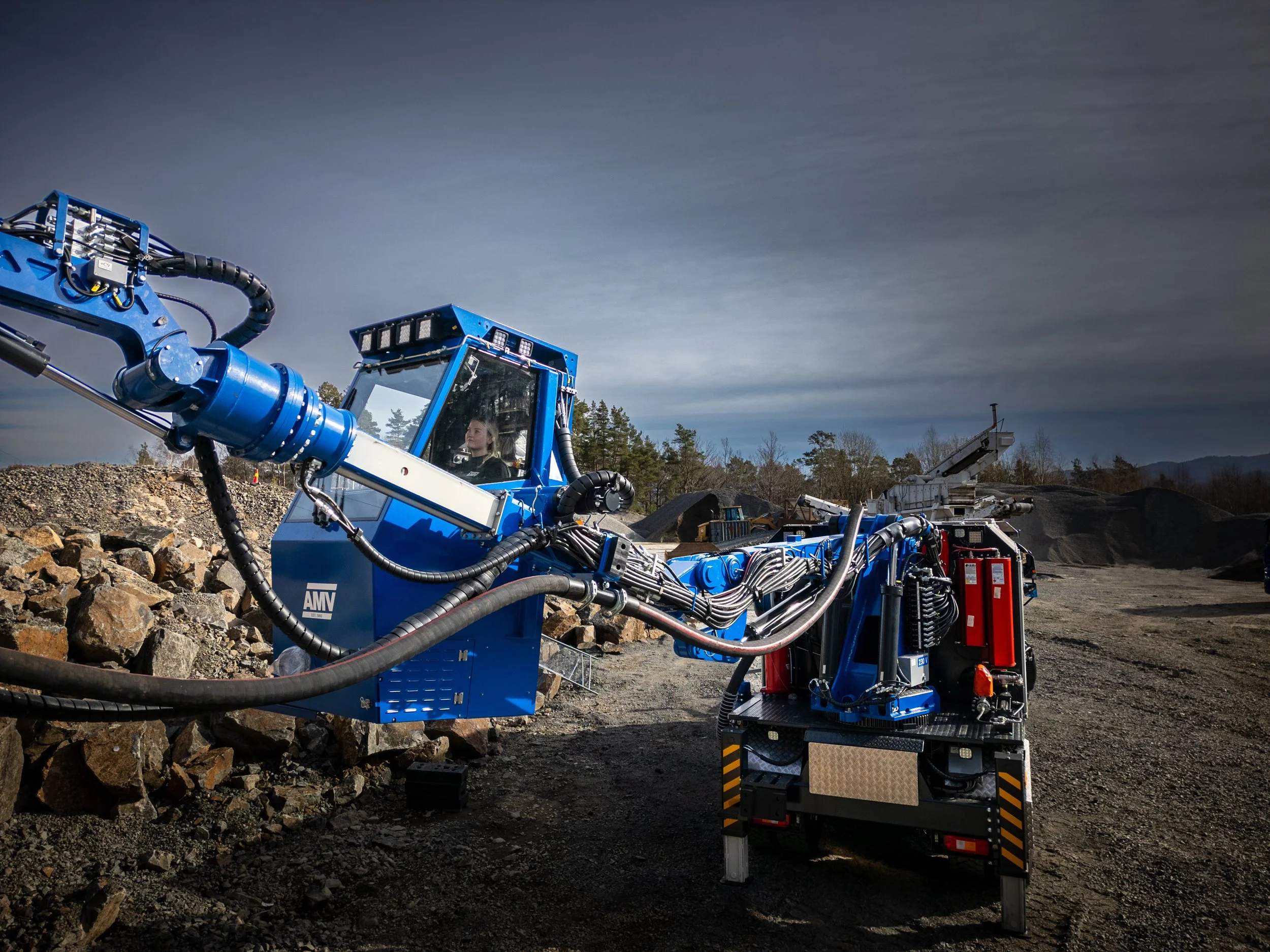

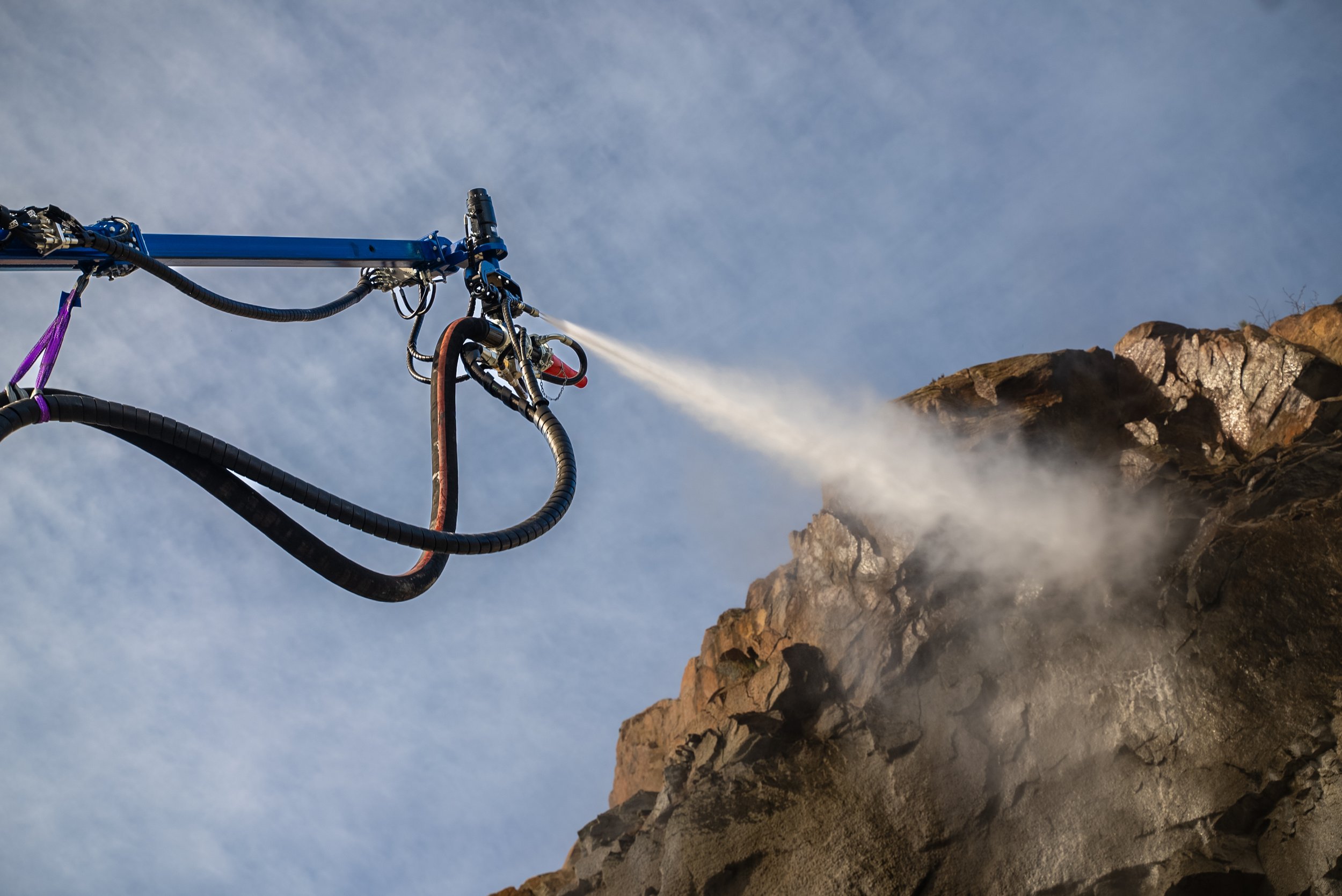

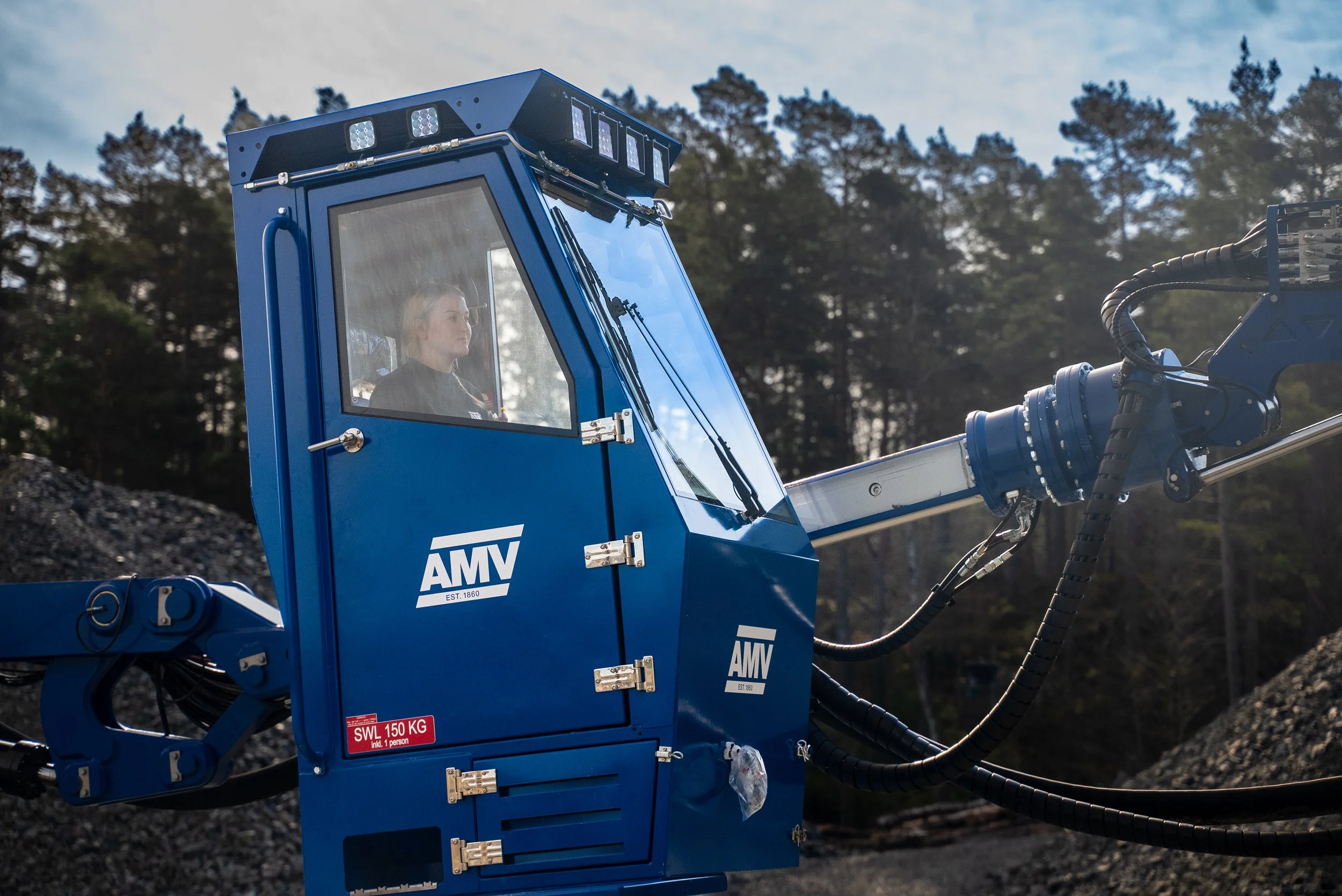

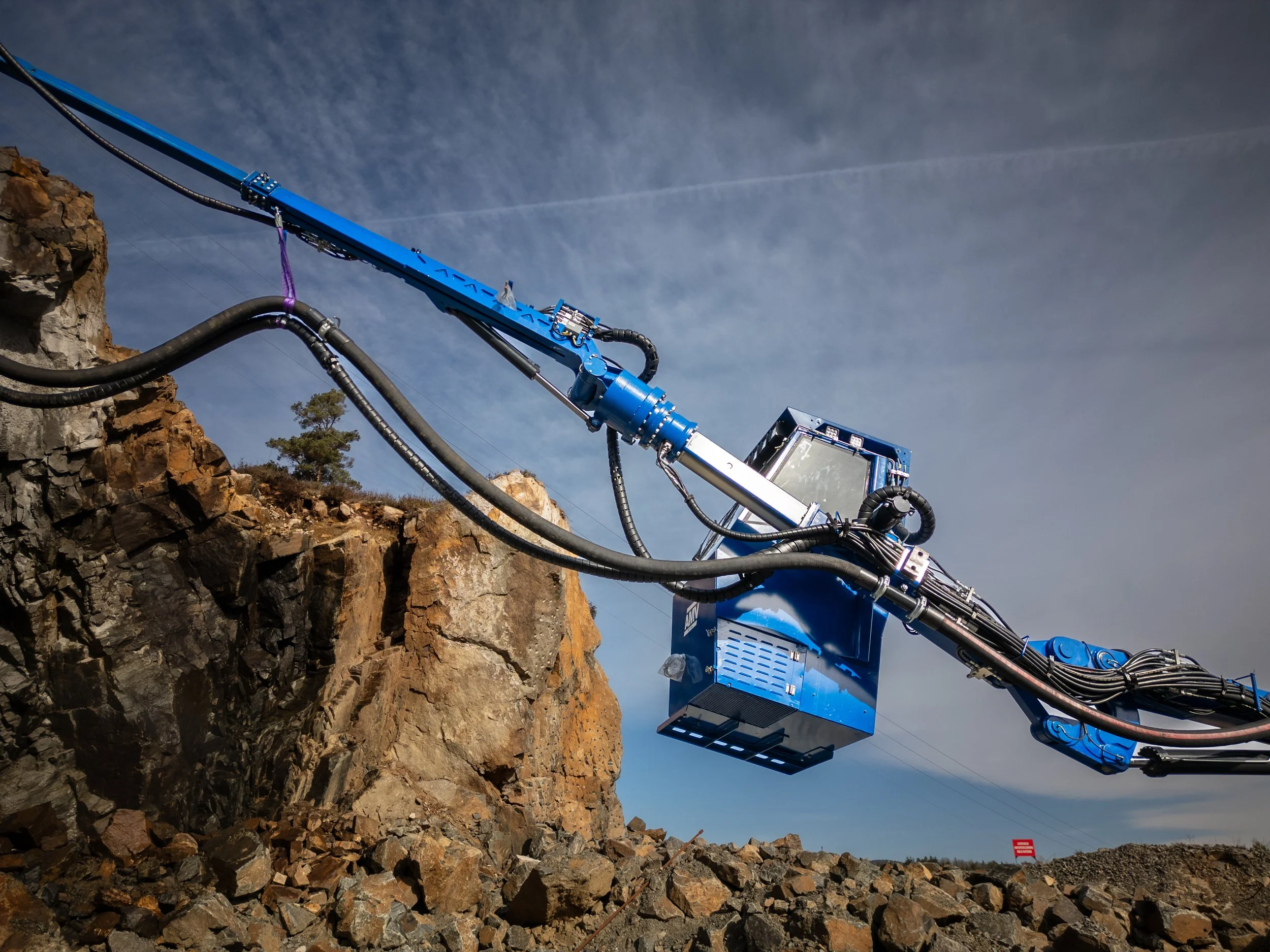

Designed for spraying of shotcrete on rock surfaces for securing of the rock, as well as protection against penetration of water and moisture. The machine has a compact design and is the preferable option for mining- and tunnel applications where the cross section is narrow, and the available height is limited. The boom geometry is with its extensions and twisting properties, makes the machine ideal for complex spraying conditions in confined spaces. The operator can either maneuver the machine from the enclosed operator cabin, which can be mounted in two different locations, or from the surroundings using either cable- or radio-controlled handheld operator panel.

The machine is fitted with either a ball-valve or s-tube type, hydraulic operated concrete pump, both with a theoretic maximum pumping capacity of 25 m³ / hour. Hydraulic powerpack, air compressor and electric components are secured inside the enclosed container compartment. The machine can be delivered with three different drive lines; electro-hydraulic (1000V / 690V), diesel-hydraulic or hybrid (combination of electro-hydraulic and diesel-hydraulic)

Main specifications:

Emissions class: Euro 6

Max Power: 314 kW

El-motor: Combined power output 200 KW 50 Hz

Pumping capacity: 25 m³ / h

Coverage area:

Boom reach, horizontal: 11.6 m

Boom reach, vertical: 13 m

Transport dimensions:

Length: 11.6 m

Width: 2.85 m

Height: 3.2 m

Weight: 24 t
