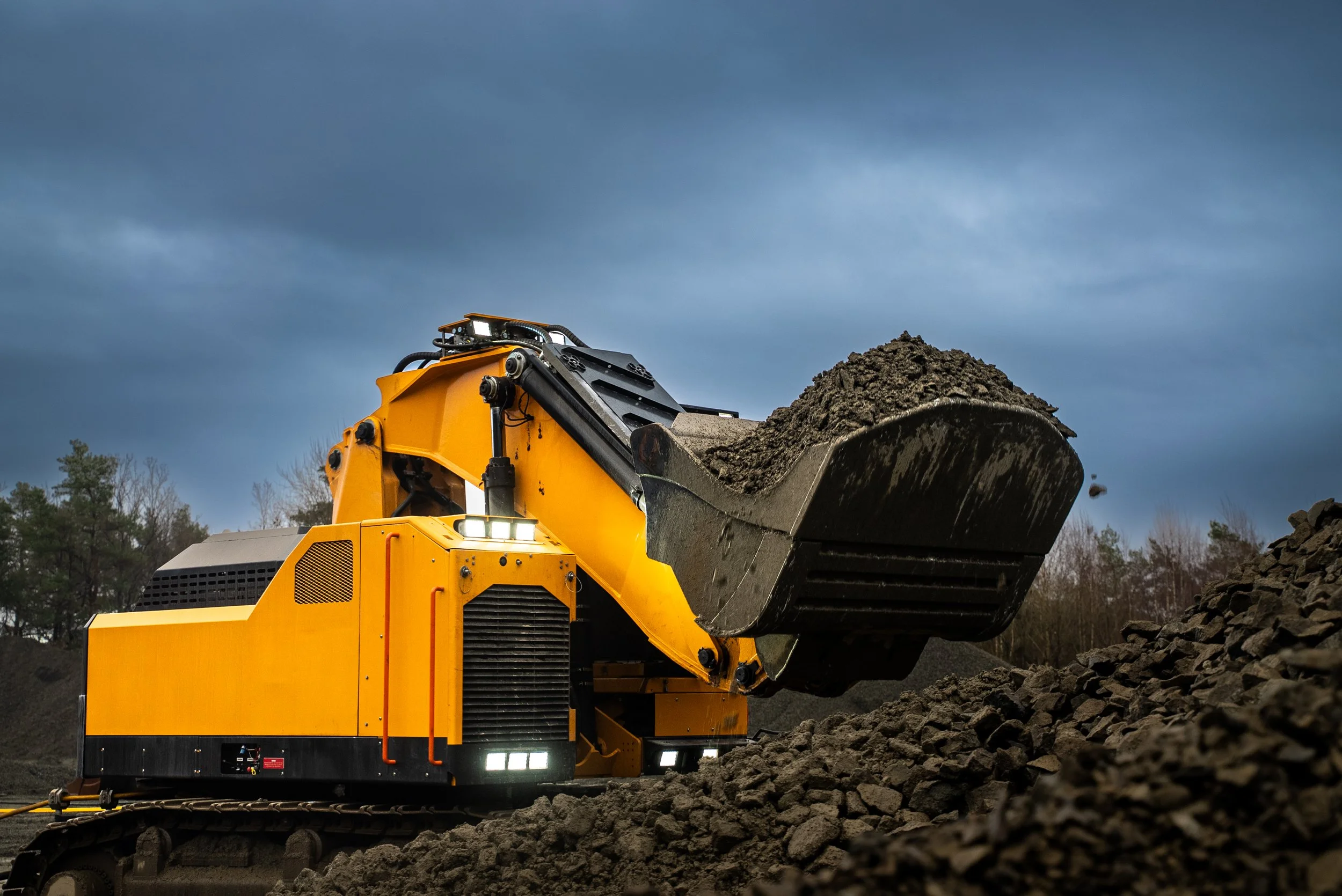

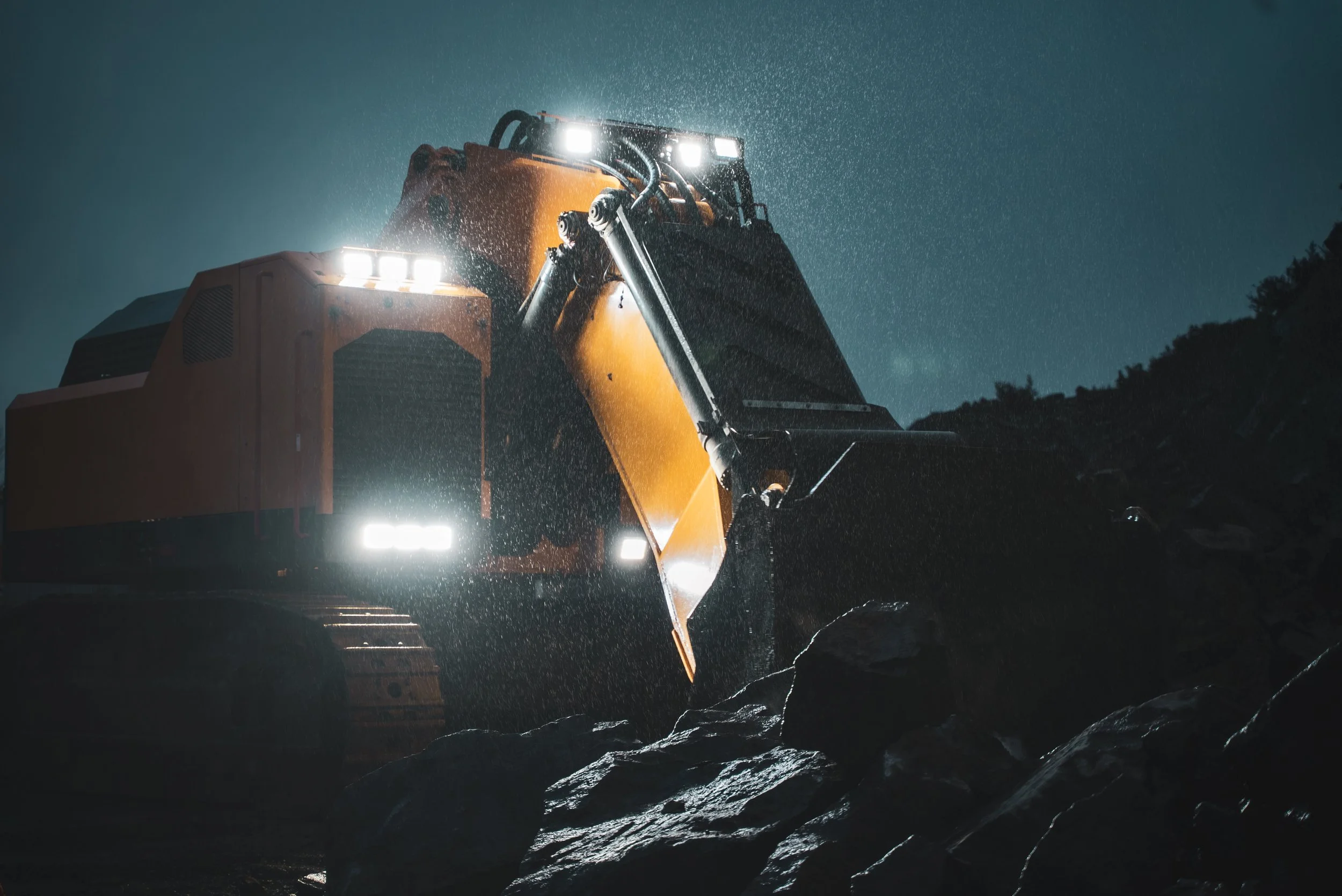

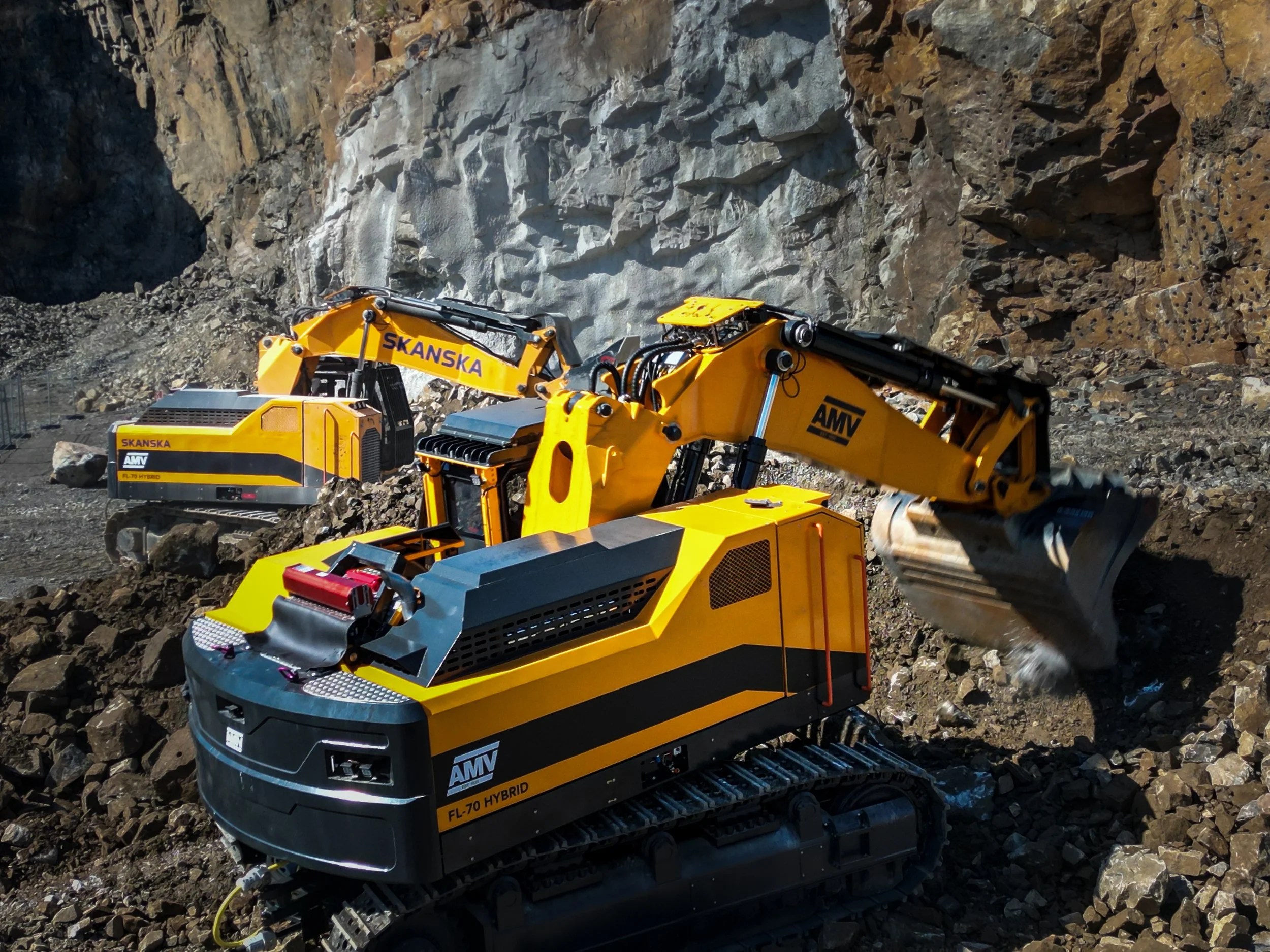

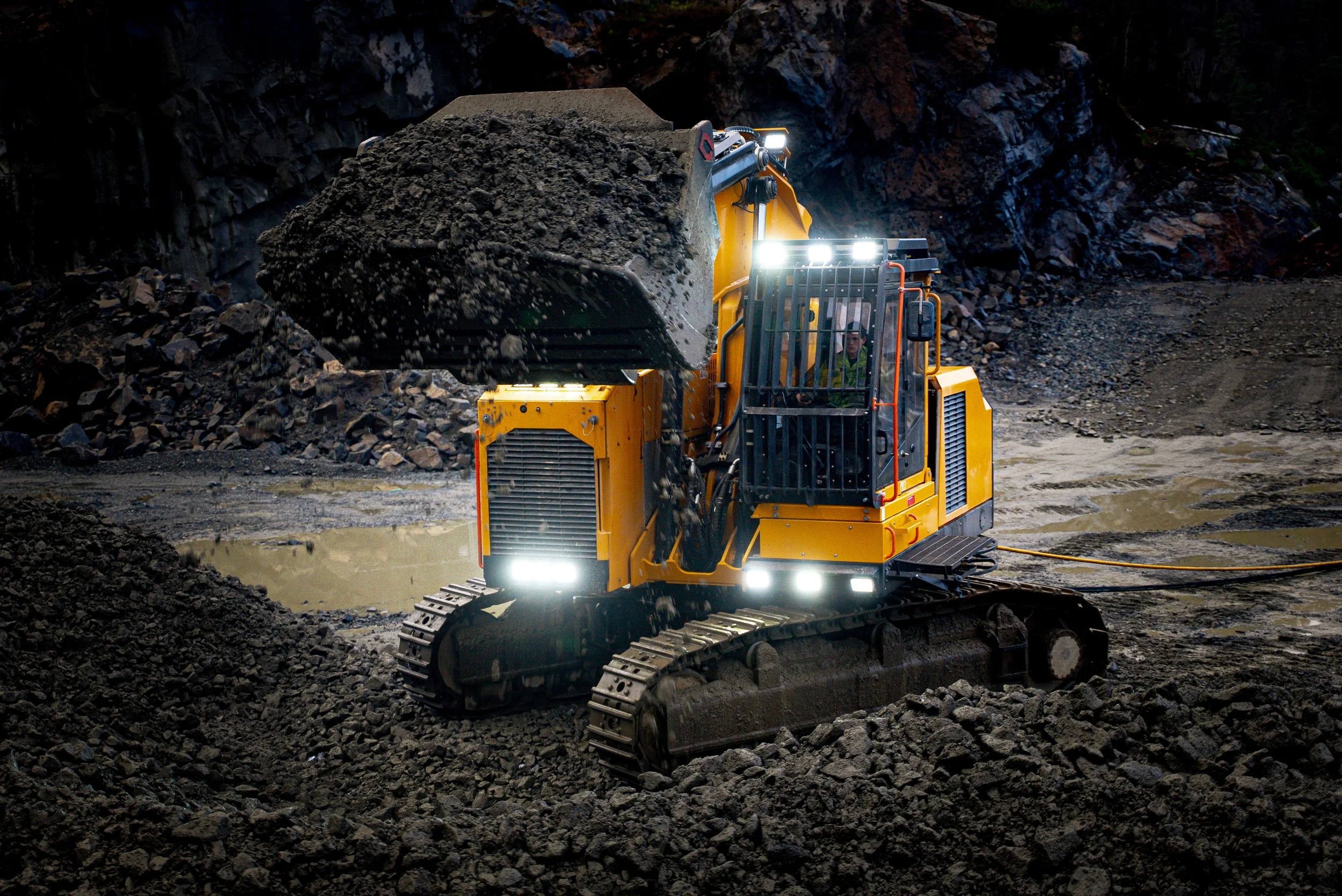

AMV FL70 Hybrid

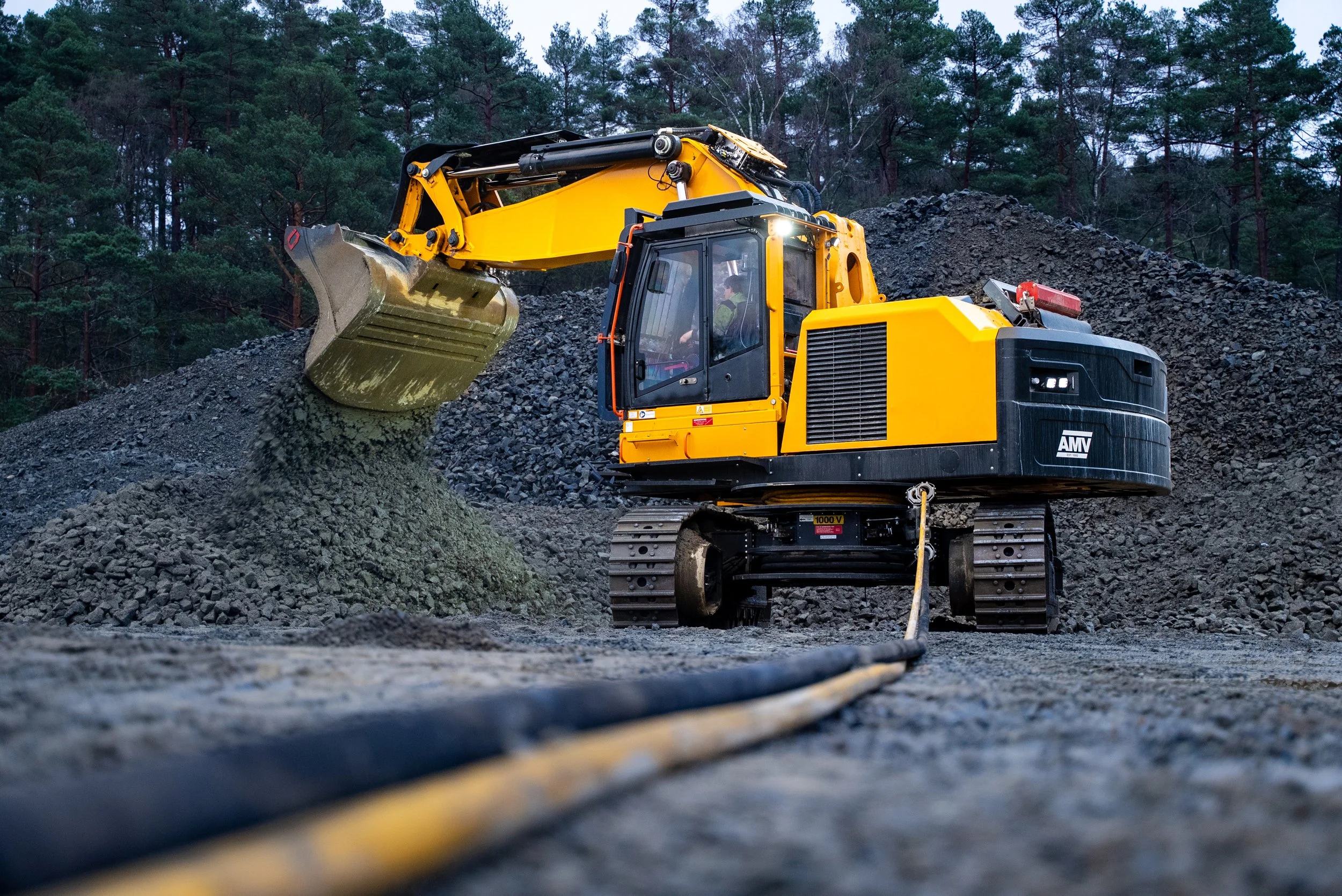

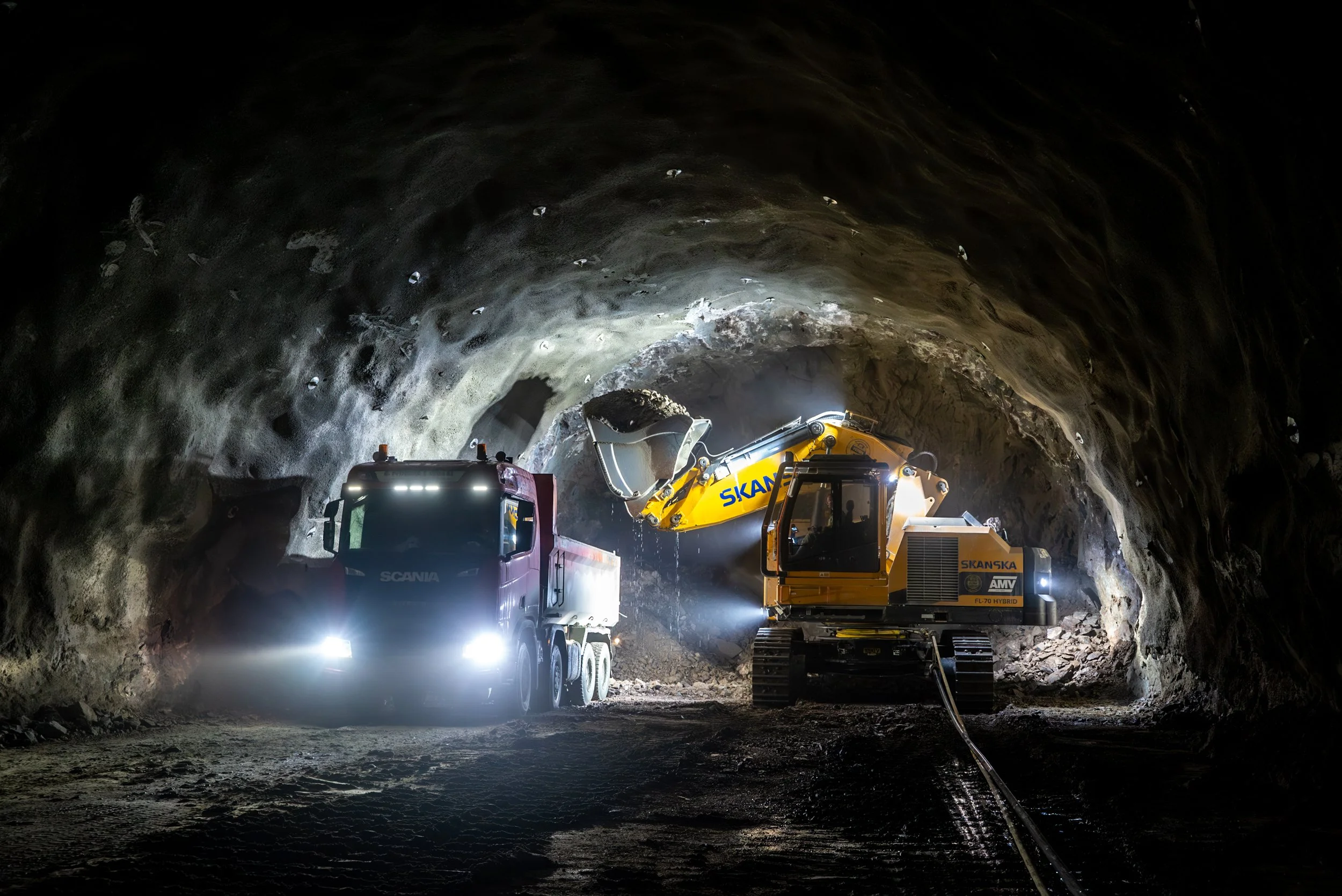

Designed for unloading rock masses and machine-cleaning of rock faces in quarries, tunnels and mines. It has a special boom geometry which enables it to operate in areas with very limited cross-sections. The power source of the machine can either be the diesel engine or the electric motor. There is a large cable reel mounted to the undercarriage of the excavator, which allows it to connect to 1000V power grids. It also has quick-coupling between the boom and bucket for quick and easy switching of equipment.

Main specifications:

Emissions class: Stage 5

Max Power: 340 kW per ISO 9249

El-motor: Power output 250 kW 50 Hz

Standard bucket size: 5.3 m³

Quick-coupling type: AMV1

Protection cage: FOPS approved frame Level 2

Coverage area:

Range: 8.9 m

Turning radius counterweights: 3.2 m

Turning radius bucket: 4.8 m

Transport dimensions:

Length: 8.9 m

Height: 4.2 m

Width: 3.49 m

Weight complete: 70 t

Weight without counterweights and bucket: 50 t
